Micsig STO1004 - Osciloscopio Táctil Portátil Mixto 100MHZ / 4 Canales

70Mpts Memory Depth

Hardware-based Zoom technology and up to 70Mpts memory depth, allow users to move and browse waveforms much easier and quickly zoom in to focus on the interested area.

Serial Bus Decoding

Support UART, LIN, CAN, I²C, SPI serial bus decodings, display waveform and data at the same time.

Powerful Trigger Functions

Support Edge, Pulse, Logic, N Edge, Runt, Slope, Timeout, Video and Serial trigger, most intuitive trigger, fast  trigger source switching.

Integrated Control Panel

Innovative multifunction navigation buttons, deliver quick and accurate control.

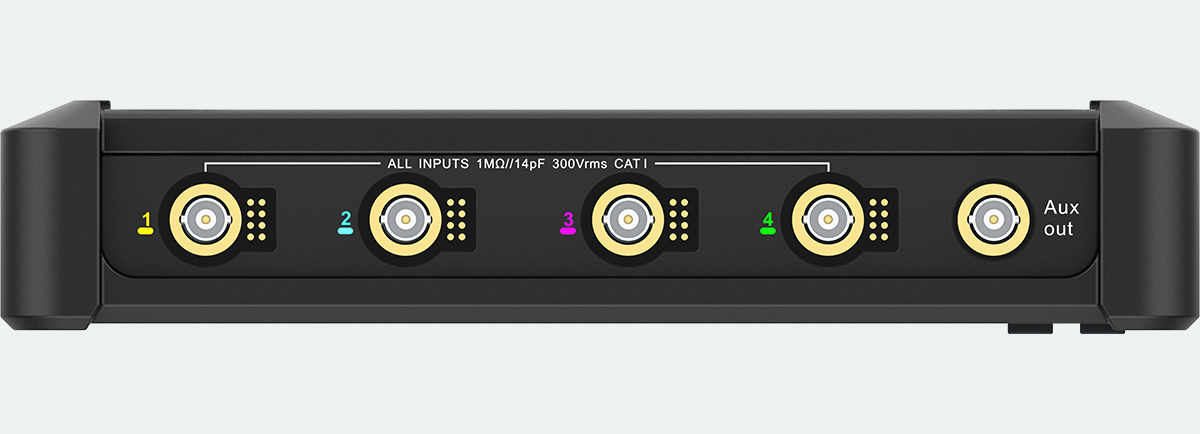

Universal Probe Interface (UPI)

Micsig UPI, which directly powers Micsig DP750 series differential probes or similar probes from other brands.

Portable & Benchtop

Built-in 7500mAh Li-ion battery support 5h long field work, Power-off lock secure safety to carry and store; Triangle link rear stand make sure it sits on the bench solidly

Android Operation System

With world-first Android based OS, the Smart STO1000 provides excellent user experience and promising applications.

Large 32GB Internal Storage

Allow users to store and access mass files, such as waveforms, screenshots and recorded videos.

High Waveform Update Rate

Waveform update rate up to 130,000 wfms/s, the STO1000 series can easily capture unusual or low probability events.

31 Auto Measurements

All 31 types of automatic measurements can be displayed on one screen, one touch to clear, the best auto measurement on the market.

Color Temperature

Under Color Temperature display, the trace occurrence is represented by different colors as opposed to changes in the intensity of one color. Red colors represent more frequently occurred events,

while the bule represents less frequently ones.

Bandwidth Filter

The High Pass / Low Pass filter function helps engineers rule out insignificant frequency so to eliminate interference and observe the true state of the signal.

Channel Label

When measuring on multiple channels, users can have different labels for different sources to

facilitate observation and reading.

Remote Control

Support PC software + Mobile phone App (Android / iOS) remote control via connections of Wi-Fi, USB, able to access internet for online upgrade, it also can be projected through HDMI port for demonstrations for training and education purpose.
